Gantry galvanometer continuous laser welding machine Back to list
Gantry galvanometer continuous laser welding machine
Description:
The machine uses fiber continuous laser, gantry movement structure, high power galvanometer welding joint, water cooling system, PC control system and other important components integration, it has high power, fine beam quality, maintenance-free, high electro-optical conversion efficiency and other characteristics, can be point, straight line, circle and other arbitrary plane geometry trajectory welding. It is an efficient, safe and stable high power fiber laser welding machine, which has excellent performance in the lithium battery welding process.
Inquire

Equipment Introduction

The machine uses fiber continuous laser, gantry movement structure, high power galvanometer welding joint, water cooling system, PC control system and other important components integration, it has high power, fine beam quality, maintenance-free, high electro-optical conversion efficiency and other characteristics, can be point, straight line, circle and other arbitrary plane geometry trajectory welding. It is an efficient, safe and stable high power fiber laser welding machine, which has excellent performance in the lithium battery welding process.

Model Features

1. Gantry frame movement structure, large surface stroke working welding range
2. The photoelectric conversion efficiency is high, and the beam quality is very good
3. Adjustable laser power, less power consumption, daily maintenance free
4. Automatic top pressing welding device, reduce welding tooling requirements
5.PC industrial computer, welding numerical control programming system, easy to learn
6. Support the addition of CCD visual positioning system, automatic focal length measurement system functions


Field of Application

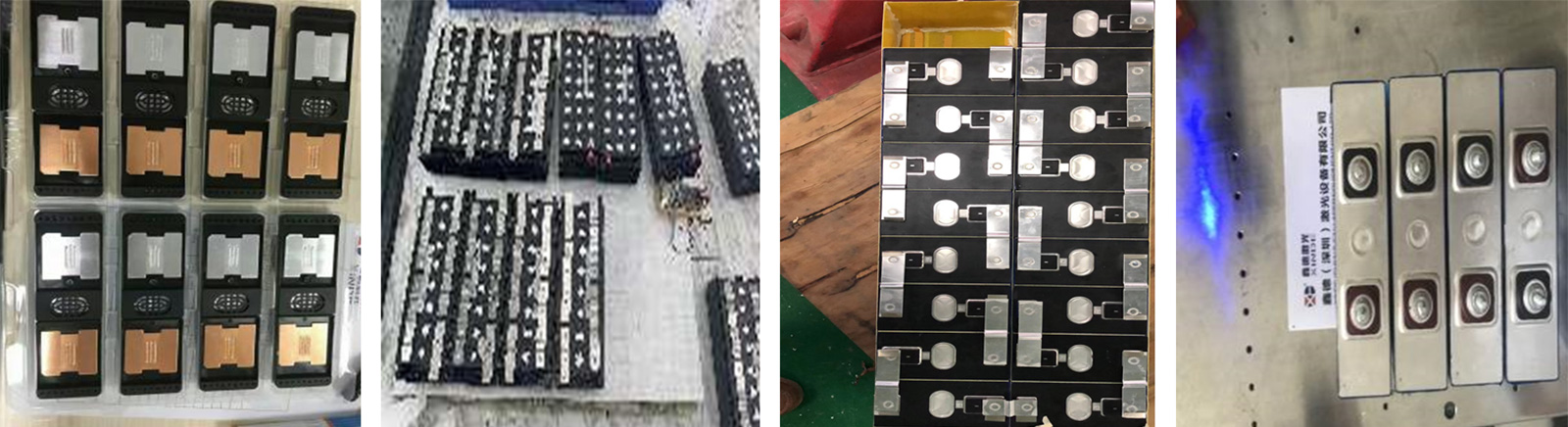

Mainly used for new energy lithium batteries: Busbar welding, nickel welding, pole lug welding, stud welding, confluence row welding, explosion-proof valve welding, shell sealing welding, liquid injection port welding, etc.

Equipment Parameters

Laser parameters

Power of laser

1500W、2000W、3000W、4000W、6000W

Wavelength of laser

1070±10nm

Power adjustable range

10-100%

Light fiber core

20μm/50μm/100μm(Optional according to application requirements)

Mode of cooling

Constant temperature water cooling

Operating temperature

10℃-35℃

Other Parameters

Effective travel distance

The X axis 900(800)MM The Y axis 600MM The Z axis 400MM

Machine weight

<900KG

Overall dimensions

L1560×W1350×H2050mm


Battery module
